Plastic thermoforming is a manufacturing process in which a plastic sheet is heated until pliable, then shaped over a mold using pressure, vacuum, or both, and trimmed to produce a finished part [vantageplastics.com]. In electronics manufacturing, it occupies a specific and often underappreciated role: producing enclosures, trays, liners, and structural housings that injection molding cannot cost-effectively deliver at low-to-mid volumes or large part sizes. Understanding where thermoforming fits, and where it does not, helps engineering and procurement teams make better tooling and process decisions earlier in product development.
TL;DR
- Thermoforming shapes heated plastic sheets over molds and is particularly cost-effective for large parts, low-to-mid volumes, and rapid prototyping cycles.
- It is not a direct replacement for injection molding; each process has a defined window of suitability based on part geometry, volume, and tolerance requirements.
- Thermoforming integrates directly into end-to-end electronics manufacturing when treated as a parallel process track alongside PCBA, box build, and cable assembly.
- DFM alignment between enclosure design and electronic assembly is critical and is best addressed at the NPI stage, not after tooling is committed.
- Thermoforming capabilities spanning thin-gauge up to very large-format parts exist within vertically integrated manufacturing facilities that also support full electronics production.
About the Author: Season Group is a global design and manufacturing partner with over 50 years of experience in electronics manufacturing, operating production facilities across Mexico, Malaysia, the UK, and China. Its Penang, Malaysia facility holds AS9100D certification and specialises in aerospace-grade thermoforming, giving the company direct, production-level experience with plastic forming as a component of integrated electronics builds.

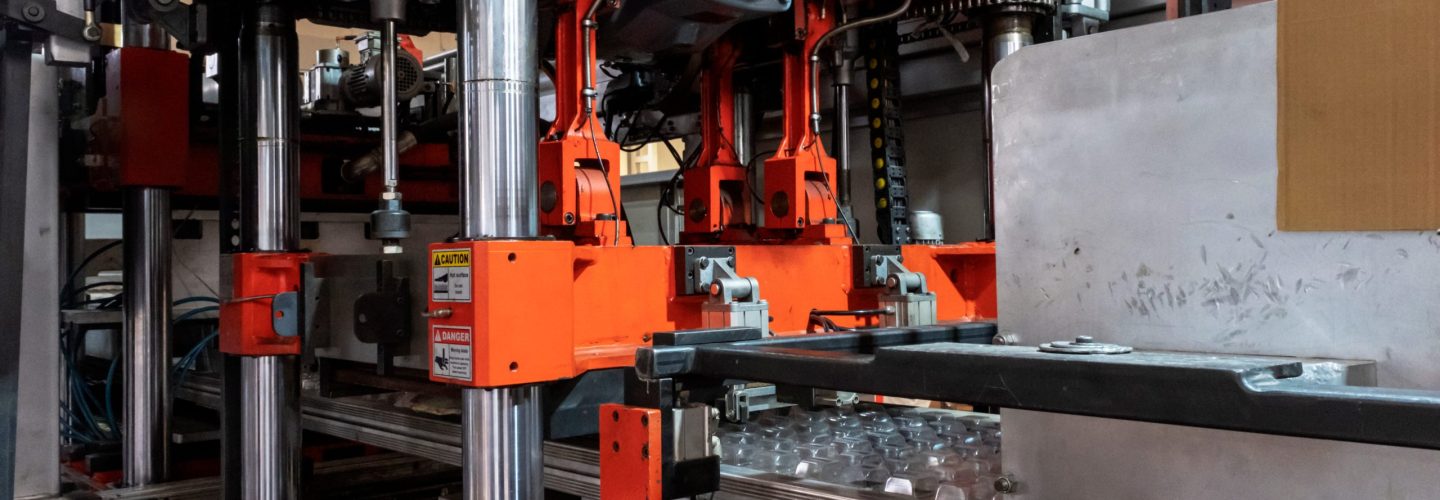

What Is the Plastic Thermoforming Process?
Thermoforming involves heating a thermoplastic sheet to its forming temperature, stretching it over or into a mold, and allowing it to cool and retain the mold’s shape [formlabs.com]. The process relies on the material’s elastic and viscous behavior at elevated temperatures: when force is applied, the sheet stretches and conforms to the mold geometry before cooling locks in the form [thermoformingdivision.com].
The core process steps are:
- Sheet loading onto the forming machine frame
- Heating to the material’s specific forming temperature range
- Forming via vacuum, pressure, or matched tooling
- Cooling and solidification against the mold surface
- Trimming to final part geometry
- Inspection and secondary operations (painting, bonding, insert fitting)
There are two primary categories based on sheet thickness:
| Category | Typical Sheet Gauge | Common Applications |
|---|---|---|
| Thin gauge thermoforming | Under 1.5mm | Packaging, component trays, medical blister packs [ptonline.com] |
| Thick gauge (heavy gauge) | 1.5mm and above | Enclosures, panels, structural housings, aerospace interiors [compositesworld.com] |
In electronics manufacturing, both categories appear: thin gauge for protective trays and internal liners, thick gauge for instrument housings and control panel covers.
Thermoforming vs Injection Molding: Which Process Belongs Where?
Thermoforming vs injection molding is one of the most practically important decisions in product development. Neither is universally superior; the right choice depends on part geometry, required tolerances, annual volume, and tooling budget.
| Factor | Thermoforming | Injection Molding |
|---|---|---|
| Tooling cost | Lower (aluminum or composite molds) | Higher (hardened steel tooling) |
| Lead time for tooling | Shorter | Longer |
| Part complexity | Suited to large, shallow geometries | Suited to complex, undercut, or fine-detail parts |
| Wall thickness consistency | Variable across deep draws | Highly consistent |
| Volume efficiency | Low-to-mid volume cost-effective | High volume preferred |
| Large format parts | Practical up to very large sizes | Constrained by press platen size |
For electronics enclosures, thermoforming is typically the right choice when part footprint is large, volumes are under tens of thousands of units annually, or time-to-market pressures require tooling within weeks rather than months [jamestownplastics.com]. Injection molding takes over when detail resolution, tight dimensional tolerances, or very high volumes drive unit cost down enough to justify the tooling investment.
Thermoforming vs Vacuum Forming: Are They the Same Process?
Thermoforming vs vacuum forming is a common point of confusion. Vacuum forming is a subset of thermoforming, not a separate category [formlabs.com]. All vacuum forming is thermoforming; not all thermoforming is vacuum forming.
- Vacuum forming uses negative pressure (vacuum) on one side of the heated sheet to draw it against the mold. It is the simplest and most widely used method for large, relatively shallow parts.
- Pressure forming applies positive air pressure from the opposite side to push the sheet against the mold, achieving finer surface detail and sharper radii.
- Matched-die forming uses two mold halves, delivering the tightest dimensional control of the three methods.
For electronics enclosures requiring cosmetic surface quality or defined feature edges, pressure forming is generally preferred over basic vacuum forming.
How Does Thermoforming Integrate Into NPI and Electronics Manufacturing?
NPI electronics manufacturing is where thermoforming decisions either get made correctly or get made expensively. The enclosure design and the internal electronics assembly are not independent workstreams; they constrain each other directly.
Key integration points during New Product Introduction (NPI):
- Clearance and fit validation: The thermoformed housing must accommodate PCBA dimensions, connector egress points, fastener bosses, and thermal management features. These should be confirmed in prototype thermoformed parts before PCB layout is finalised.
- Design for Manufacturing (DFM) review on the enclosure: DFM services applied to thermoformed parts should flag draft angles (typically 3-5 degrees minimum for clean part release), minimum wall thicknesses, and draw ratio limits before tooling is cut.
- Parallel tooling and PCBA development: Thermoforming tooling lead times are shorter than injection mold tooling, which makes it feasible to develop enclosure tooling in parallel with PCBA development and arrive at functional box build simultaneously.
- Material selection tied to end-use environment: ABS, HIPS, PC, and PETG each behave differently under heat forming and have different long-term performance profiles in electronic equipment environments. This choice belongs in the NPI phase, not post-tooling.
Season Group’s integrated approach to design for manufacturing services specifically addresses this: DFM and DFA reviews cover the full box build, including the enclosure, not just the PCB. That alignment at NPI reduces costly late-stage rework.
What Materials Are Used in Thermoforming for Electronics?
Material selection directly determines formability, finish quality, and end-use durability [cwthomas.com]. Common choices in electronics applications include:
- ABS (Acrylonitrile Butadiene Styrene): Good impact resistance, paintable, widely used for instrument housings and control panels
- HIPS (High Impact Polystyrene): Cost-effective, easy to form, suitable for internal trays and non-structural covers
- Polycarbonate (PC): High clarity and impact resistance; used where optical or high-strength properties are needed
- PETG: Excellent forming characteristics, good chemical resistance, suitable for medical and cleanroom electronics enclosures
- ASA: UV-stable variant suited for outdoor electronics enclosures
How Does Thermoforming Fit Across a Global Electronics Manufacturing Footprint?
Season Group operates electronics manufacturing across China, Malaysia, Mexico, and the UK. Thermoforming is not isolated to a single site; its placement within the network reflects the end market and certifications required.
- China: Season Group’s Dongguan facility (670,000 sq ft) operates as a Centre of Excellence for high-volume, vertically integrated production where thermoforming supports large-scale enclosure supply alongside full PCBA and box build.
- Mexico: The Reynosa facility serves automotive-adjacent production with TS16949 certification, where plastic forming supports harness and module enclosure requirements.
- UK: The Havant facility handles quick-turn NPI builds where thermoforming prototype parts can be evaluated alongside early-stage PCBA assemblies.
- Malaysia: The AS9100D-certified facility specialises in aerospace thermoforming, producing large-format structural and interior components for Airbus 350 programs.
This geographic spread also supports component obsolescence management: when supply chain disruptions affect specific materials or formed components, transferable processes across sites provide continuity options that single-site manufacturers cannot offer.
Frequently Asked Questions
Q: Is thermoforming suitable for high-volume electronics production?
Thermoforming is cost-effective at low-to-mid volumes. At very high volumes, injection molding typically delivers a lower per-unit cost once tooling amortization is factored in. The crossover point depends on part size and complexity.
Q: What are the main limitations of thermoforming for electronics enclosures?
Wall thickness consistency is harder to control than in injection molding, particularly on deep draws. Undercuts and complex internal features require additional tooling mechanisms or secondary operations.
Q: Can thermoforming and injection molding be used together in the same product?
Yes, and this is common. Thermoforming handles large outer enclosures while injection molding produces smaller, detail-critical components such as bezels, buttons, or connector housings within the same assembly.
Q: How does thin gauge thermoforming differ from standard packaging thermoforming?
Thin gauge thermoforming is typically used for high-speed, roll-fed production of packaging and trays [ptonline.com]. In electronics, thin gauge parts serve as component protection trays, anti-static liners, and internal separators within box builds.
Q: At what stage should thermoforming be discussed during product development?
At NPI, ideally during the initial DFM review. Decisions about draft angles, draw ratios, and material selection made late in the design cycle are expensive to reverse once tooling has been committed.
Q: What certifications matter for thermoforming in regulated industries?
For aerospace thermoforming, AS9100D is the relevant standard. For medical electronics, ISO13485 governs the manufacturing environment. For automotive plastic components, IATF 16949 applies.
Q: How does thermoforming relate to component obsolescence management?
Enclosure tooling and materials can be affected by supply chain shifts just as electronic components can. Managing thermoforming within an integrated manufacturing partner that handles lifecycle and supply chain continuity reduces exposure to material obsolescence or tooling loss when a sole-source supplier exits the market.
